Product Description: it is the core component of well washing and paraffin removal truck, well cementing truck and fracturing truck for oil field, which can transport measure fluid for oil wells such as clean water, crude oil and mud with high pressure and large displacement.

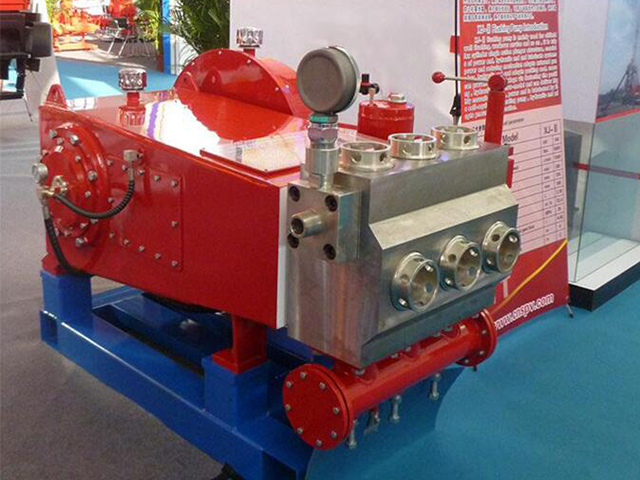

Product features: it is a horizontal three cylinder single acting reciprocating pump, mainly composed of power end, hydraulic end, power end lubrication system, hydraulic end lubrication system, etc., which is mainly used in the circulation system of workover, drilling, well washing, well cementing, fracturing and other operations. The hydraulic end of the pump can also transport strong corrosive media after transformation.
Main Technical Parameters | ||||
Name | Unit | Parameter | ||
Model | / | 3ZB-35/50 | 3ZB-40/100 | 3ZB-70/70 |
Max. working pressure | MPa | 35 | 40 | 70 |
Max. working displacement | m3/h | 50 | 100 | 70 |
Max. input power | kW | 145 | 300 | 300 |
Gear ratio | / | 4.6:1 | 4.6:1 | 4.6:1 |
Plunger diameter | mm | φ100 | φ115 | φ90 |
Plunger stroke | mm | 135 | 160 | 160 |
Plunger quantity | / | 3 | 3 | 3 |
Max. pump speed | min-1 | 280 | 360 | 360 |
